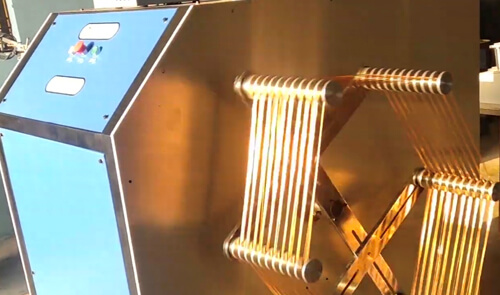

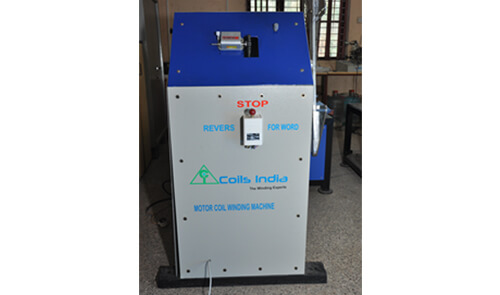

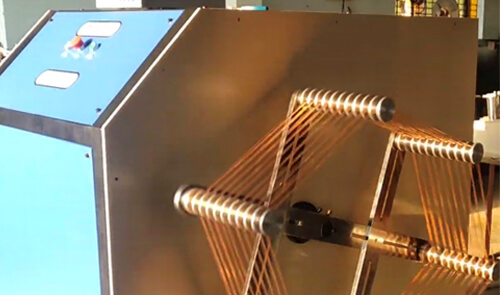

CLW 900 M-Technical details and Features
| 1 | Memory | 499 Programs’ Storage |
| 2 | Turn Set Each Slot | 9999 Max Turns |
| 3 | Production Count | Provided |
| 4 | Power Fail Save | Counter Will Not Reset |
| 5 | Wire Gauge | Max 16swg-15 Wire Parallel |
| 6 | Online Traverse Adjust | Stop The Machine Then Adjust |
| 7 | Controller Security | Password Option Provided |
| 8 | Traverse Motor | Stepper Motor With Drive |
| 9 | Spindle Motor | 5 Hp Ac Geared Motor With Vfd |
| 10 | Brake | 12v Electromagnetic |
| 11 | Winding Pitch Adjust | Provided Online |
| 12 | Every Layer Stop | On/Off. Indication Online |
| 13 | Display | 20x4 Colour Lcd Display |
| 14 | Jog Speed | Online Key Provided |
| 15 | Supply | 415v 50hz 3 Phase |
| 16 | Winding Speed | Variable By Up/Down Key 150rpm |
| 17 | Foot Switch | Provided |
| 18 | Traverse Width | 299.9mm Provided |
| 19 | Coil Diameter | 900mm Provided |
| 20 | Coil Weight | Max 20 Kgs |
| 21 | Accelaration Time | Programmable |
| 22 | De Accelaration | Programmable |
| 23 | Turns Indication | 0.1 Turns Accuracy |
