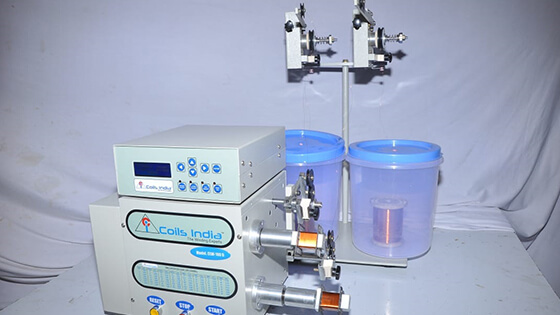

Model - CLW 100 M Technical Details & Features
| 1 | Memory | 499 Programs’ Storage |
| 2 | Turn Set Each Programmes | 99.999 Max Turns |
| 3 | Production Count | Provided |
| 4 | Power Fail Save | Counter Will Not Reset |
| 5 | Wire Gauge | 40 Swg- 18 Swg |
| 6 | Online Traverse Adjust | Stop The Machine Then Adjust |
| 7 | Wire Cut Indication | Machine Will Stop Immediately |
| 8 | Traverse Motor | Stepper Motor With Drive |
| 9 | Spindle Motor | 0.5 Hp Ac Motor With Vfd |
| 10 | Brake | 12v Electromagnetic |
| 11 | Winding Pitch Adjust | Provided Online |
| 12 | Every Layer Stop | On/Off. Indication Online |
| 14 | Jog Speed | Online Key Provided |
| 15 | Supply | 220v 50hz 1 Phase |
| 16 | Winding Speed | Variable By Up/Down Key |
| 17 | Total Taps | 8 Taps Each Prog Provided |
| 18 | Bobbin Width | 199.9mm Provided |
| 19 | Bobbin Diameter | 200mm Provided |
| 20 | Winding Speed | 30-300 Rpm |
| 21 | Accelaration Time | Programmable |
| 22 | De Accelaration | Programmable |
| 23 | Turns Indication | 0.1 Turns Accuracy |
| 24 | Controller Security | Password Option Provided |
| 25 | Foot Switch | Available On Optional |
